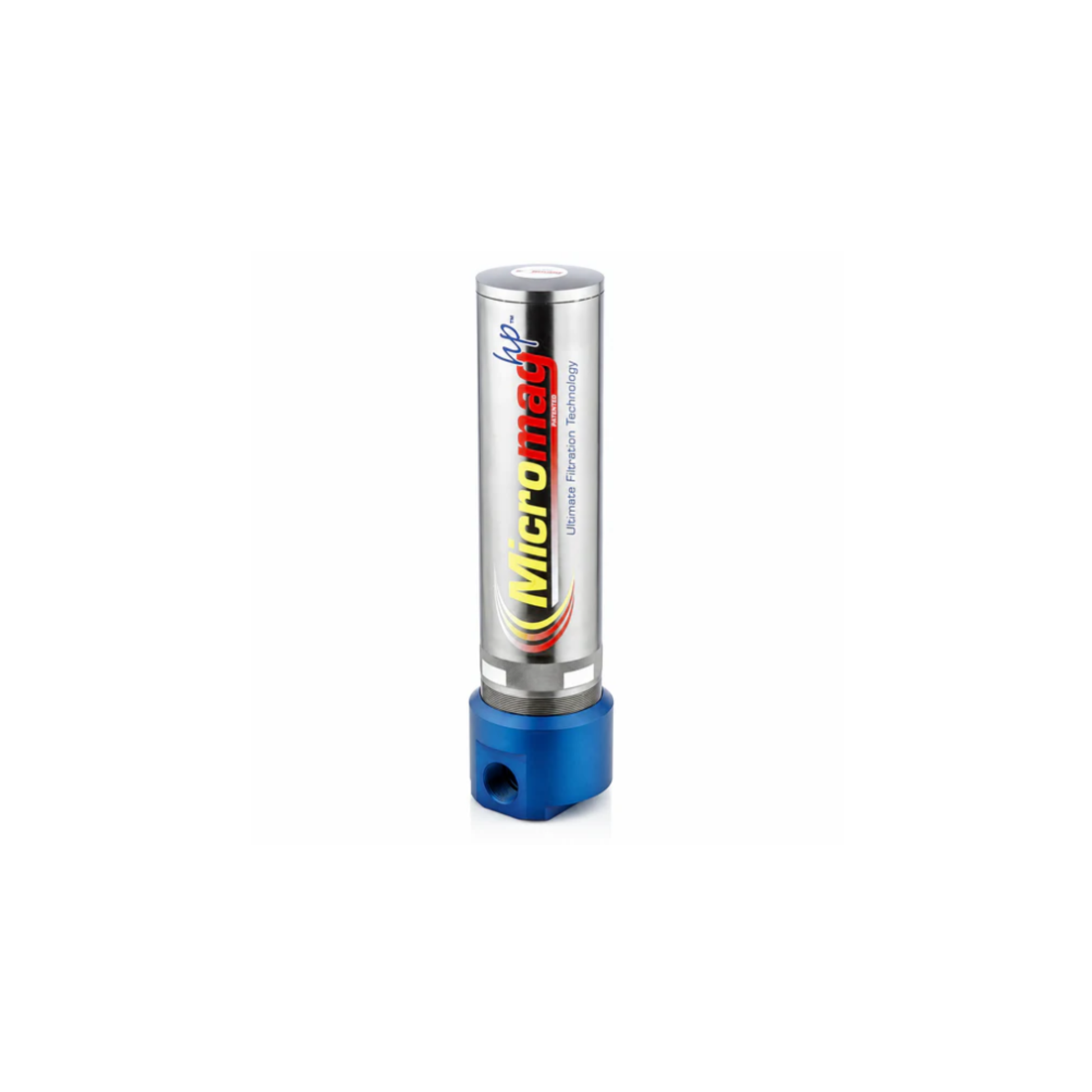

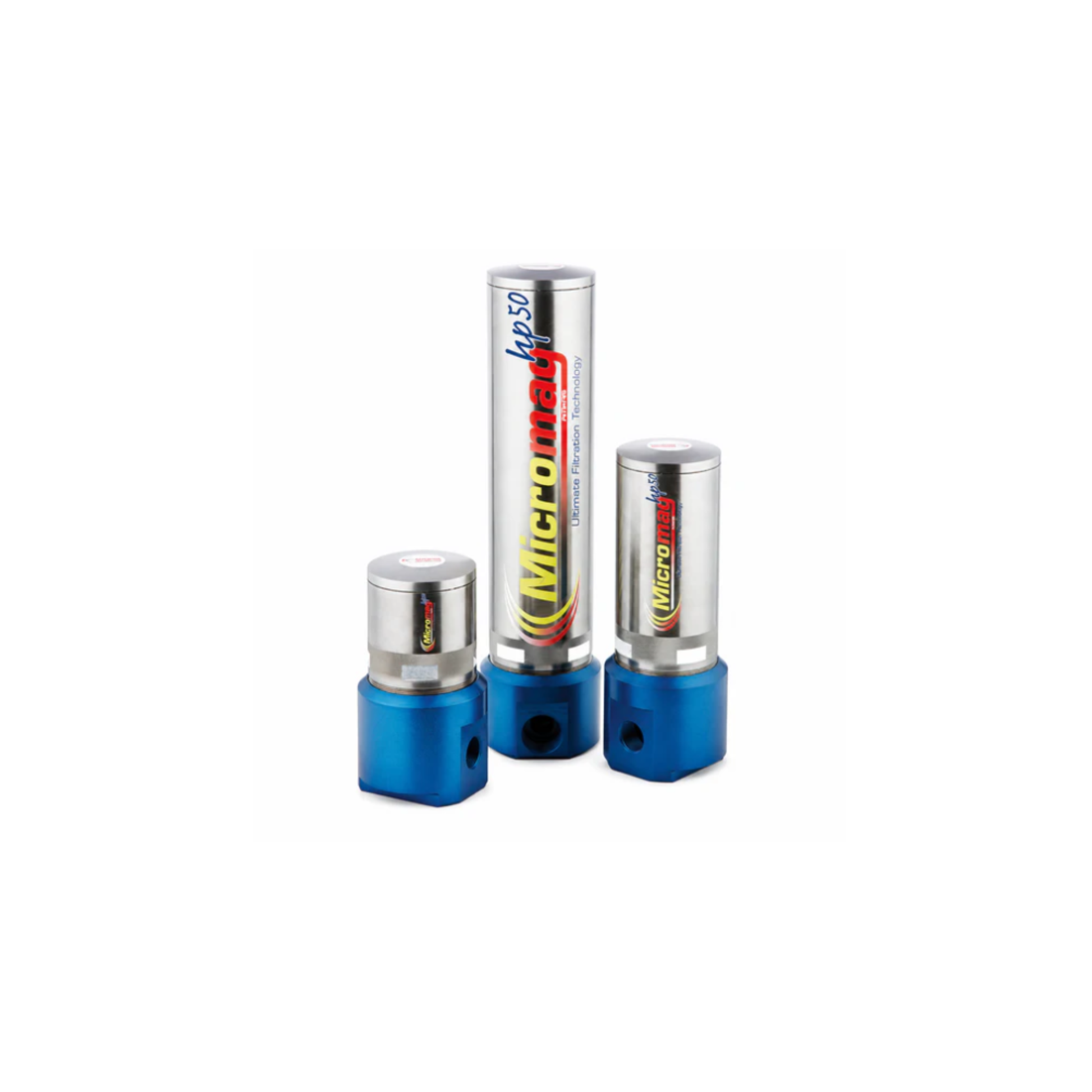

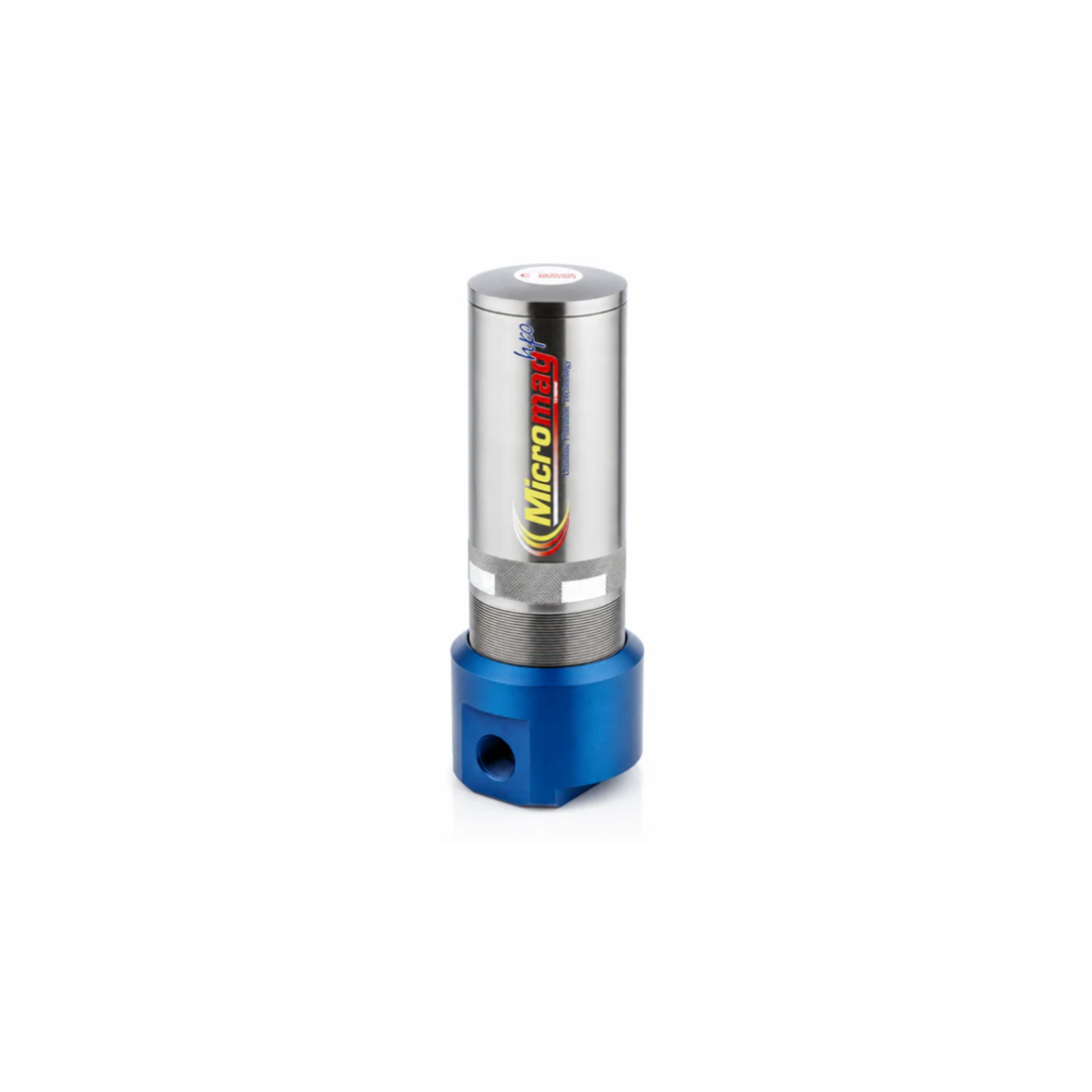

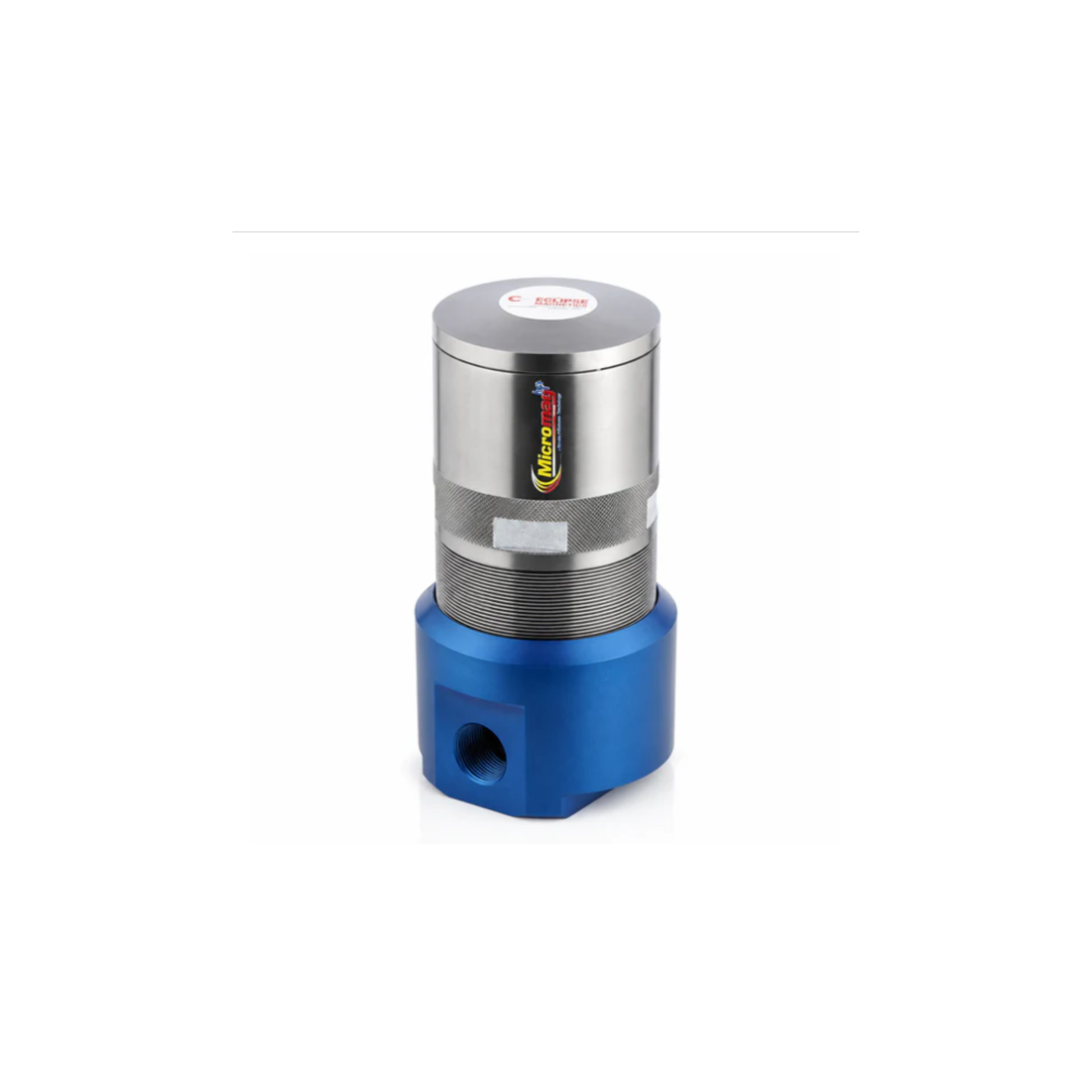

Micromag HP/50 High Pressure Magnetic Filter System
Micromag HP/50 High Pressure Magnetic Filter System
Magnet Specifications
The Micromag HP/50 High Pressure Magnetic Filter is designed for demanding CNC machining and high-pressure spindle coolant applications where ultra-fine metallic contamination can damage seals, spindles, pumps, and cutting tools. Using high intensity rare earth magnetic technology, the system efficiently removes sub-micron ferrous and para-magnetic particles from oils and coolants before they can impact machining performance or equipment reliability.
Suitable for installation pre or post pump, within delivery lines, spindle feeds, or before membrane cartridges, the Micromag HP/50 offers exceptional filtration performance without the need for disposable consumable filters. Its compact, robust aluminium construction and easy-clean magnetic core make it an environmentally responsible and cost-effective solution for precision machining environments.
Key Features
- Designed for high-pressure spindle coolant applications up to 50 Bar
- Removes sub-micron magnetic and paramagnetic contamination
- High-intensity rare-earth neodymium magnetic system
- Protects seals, pumps, spindles and cutting tools from fine particle damage
- No consumable filter cartridges required
- Fast cleaning process in under 30 seconds using the supplied cleaning tool
- Suitable for neat oils and soluble oils
- Can be installed pre- or post-pump, spindle feed or delivery line
- Full aluminium construction with anodised finish
- Environmentally responsible filtration solution
Typical Applications
- CNC machining centres
- Grinding applications
- Spindle coolant systems
- EDM machining
- Precision engineering
- Metal cutting fluid filtration
- High-pressure coolant systems
- Pre-membrane cartridge protection
