Magnetic Yoke
Magnetic Yoke
A Magnetic Yoke is a handheld or portable magnetizing device used primarily in non-destructive testing (NDT), especially magnetic particle inspection (MPI). It generates a magnetic field between its poles to detect surface and near-surface cracks or defects in ferromagnetic materials.
Description
Description

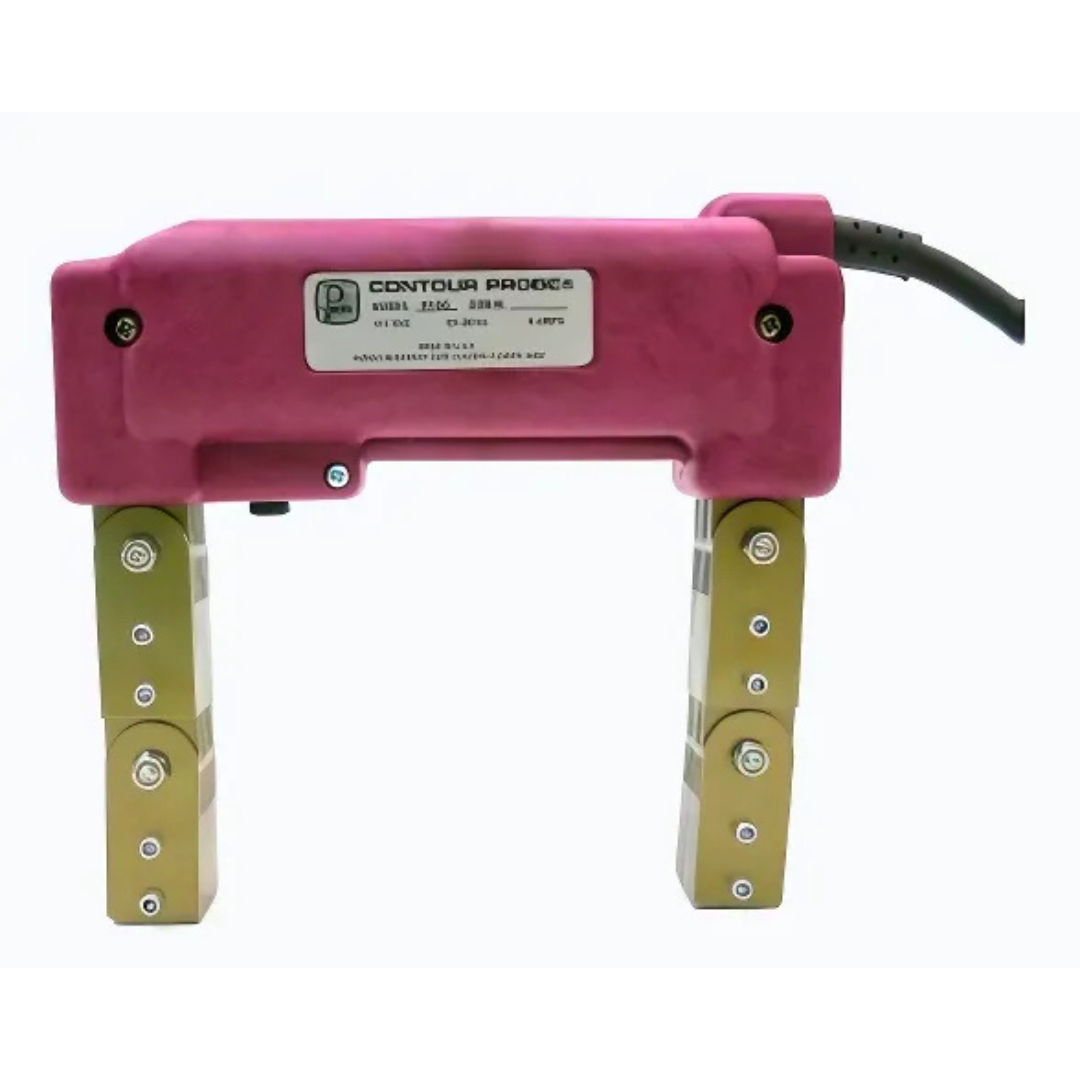

The B100 Contour Probe is a rugged high performance instrument designed for Magnetic Particle inspection to accepted Nondestructive testing standards.Parker Contour Probes are designed with flexible legs that allow the field to be "focused" at a precise area of inspection. Components are protected by a reinforced glass-filled nylon housing. Model B100 and B100S produce a strong constant AC field.Plastic carry cases (PL-Case & C-Case) and Test Kits (PL-A Kit & A Kit) are available. Standard test kits include 1 lb. each of Red & Gray powder, PB1 powder blower, and carrying case.
Key Features
Key Features
- High-impact, Glass-filled nylon housing
- AC Only
- One year repair/Replacement Guarantee
- Exceeds ASTM lifting standards
- Available with CE certification
Applications
Applications
Defect location: Surface
Ideal for:
- Field Testing
- Spot Inspections
- In-service Inspections
- Demanding Environments
- Welding Inspections
Standard Compliance
Standard Compliance
- ASME Section V, Article 7
- ASTM E709
- ASTM E1444
- EN ISO 9934-3 (230V Only)
Defect Examples
Defect Examples
- Inclusions
- Seams
- Shrink cracks
- Tears
- Laps
- Welding slags
- Grinding cracks
- Quenching cracks
- Fatigue cracks
Specifications
Specifications
- Wight: 3.18kg
- Leg Span: 0 - 304.8mm
- Cord Length: 3.048m
- Duty Cycle: 50%
- Electrical Requirements: 230VAC - 50/60hz - 3 Amps
