Magnet specifications
| Flow rate | 250 litres/min |
|---|---|
| Contamination capacity | 3kgs |
| Maximum operating pressure | 20 bar |
| Connection | 1 1/2 " PN16 flange |
| Weight | 30.5kg |
| Technical data | Data Sheet |
Magnet specifications
| Flow rate | 600 liters/min |
|---|---|
| Contamination capacity | 6kgs |
| Maximum operating pressure | 20bar |
| Connection | 2" PN16 flange |
| Weight | 54kg |
| Technical data | Data Sheet |

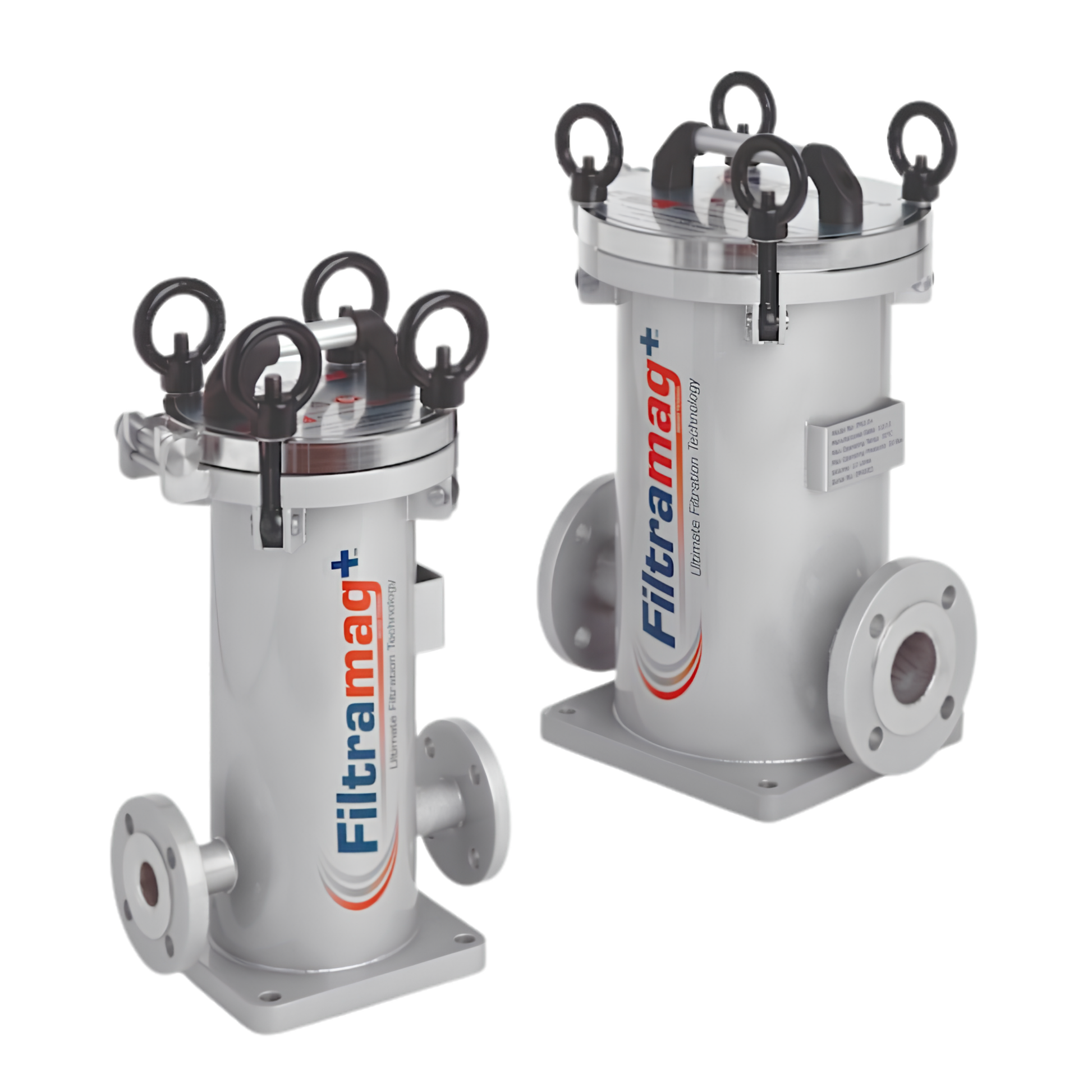

The Filtramag+ Magnetic Filter is a high-performance industrial filtration system designed to remove ferrous contamination from oils, coolants, wash systems, and process fluids. Manufactured from durable stainless steel, it provides reliable filtration performance across a wide range of industrial and chemical applications.
Featuring patented Dual Flow Technology™, the Filtramag+ maximises fluid exposure to high-intensity magnetic cores, delivering exceptional first-pass contamination removal while maintaining minimal pressure drop. Its innovative design ensures efficient operation without blocking, even in high-contamination environments.

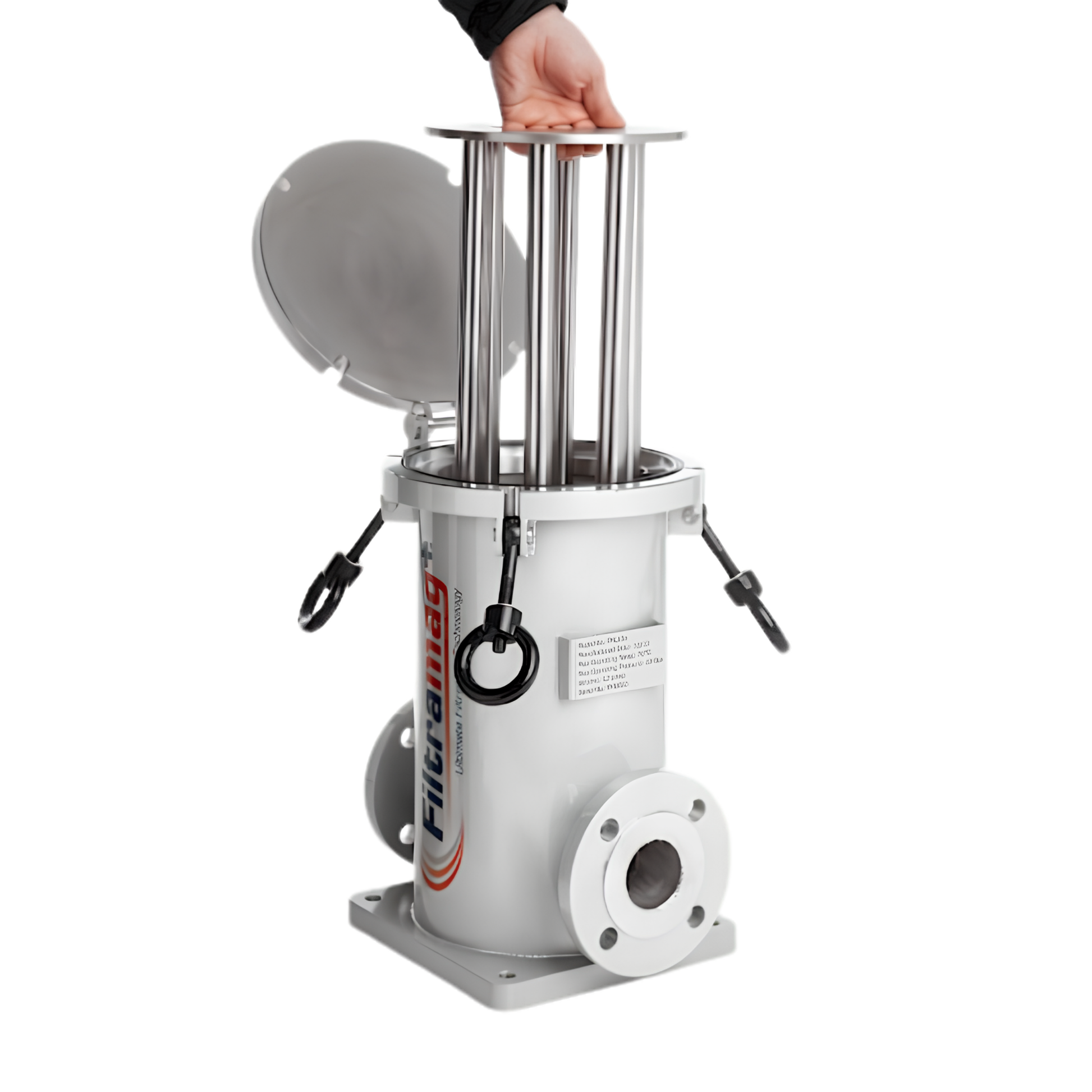

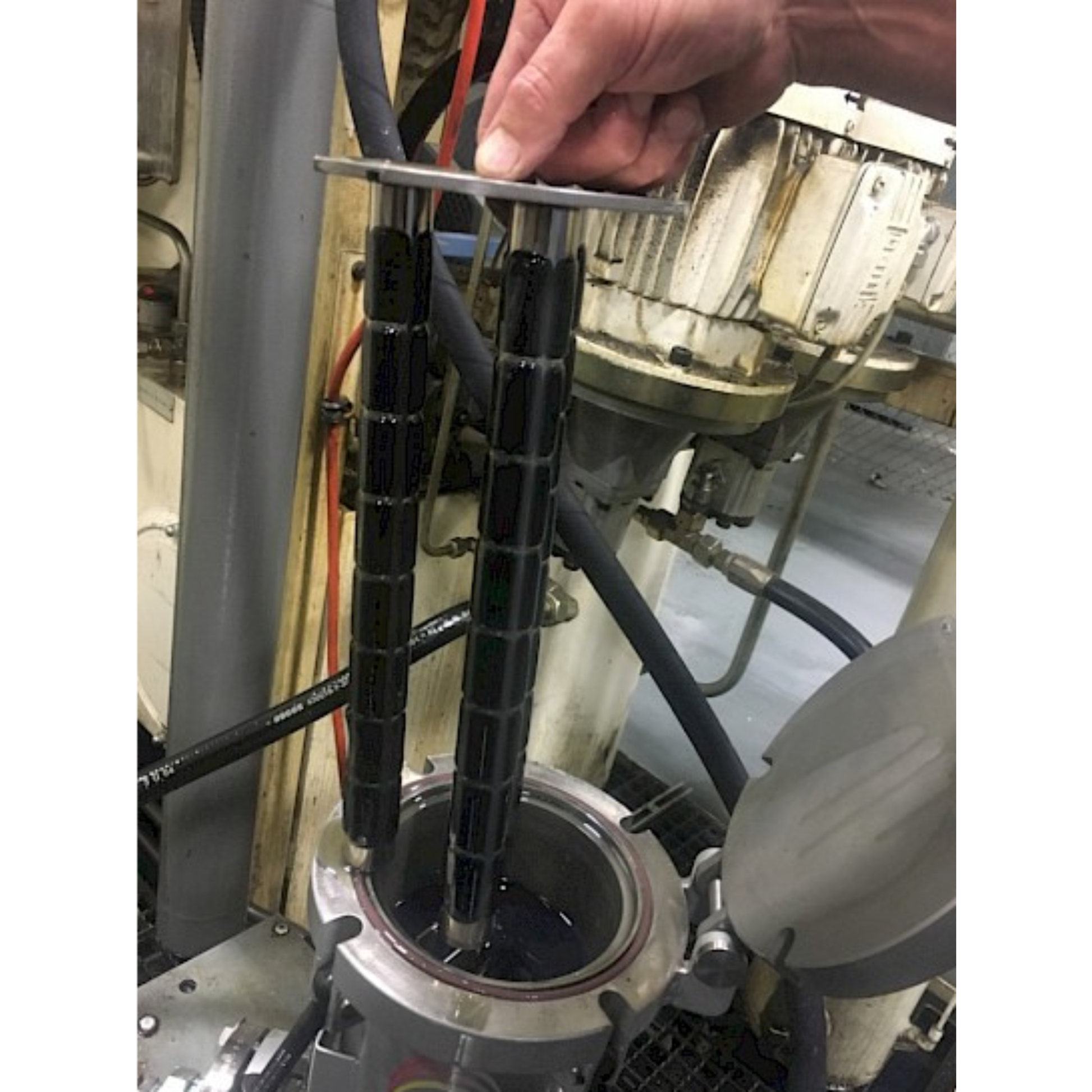

Available with either 4,000 Gauss or 11,000 Gauss magnetic core packs, the Filtramag+ Magnetic Filter can capture sub-micron ferrous particles, making it ideal for applications requiring superior surface finishes and precise fluid cleanliness.
Key Features
- Patented Dual Flow Technology™
- Full stainless steel construction
- Operates at pressures up to 20 bar
- Available in 4,000 Gauss and 11,000 Gauss configurations
- Removes sub-micron ferrous contamination
- Minimal pressure drop
- No disposable filter media required
- Suitable for harsh chemical environments
- Easy installation and maintenance
Benefits
- Improves surface finish quality
- Extends coolant and fluid life
- Reduces waste disposal costs
- Lowers maintenance expenses
- Increases tool and machinery lifespan
- Improves process efficiency
- Environmentally friendly operation
Typical Applications
- CNC machining centres
- Grinding and honing operations
- Metal cutting fluid filtration
- Industrial wash systems
- Process fluid filtration
- Precision engineering
- Chemical processing applications
The Filtramag+ Magnetic Filter offers a cost-effective, environmentally responsible solution for maintaining cleaner fluids, protecting valuable equipment, and improving productivity. Available from Magnets4U South Africa, it delivers world-class magnetic filtration performance for demanding industrial environments.
