Magnetic Chucks
Magnetic Chucks
A Magnetic Chuck is a tool used to hold ferrous workpieces securely in place during machining, grinding, or other precision manufacturing processes. Magnetic chucks use a powerful magnetic field to attract and hold metal objects firmly without the need for clamps, screws, or other mechanical fastening methods. They are commonly used in machining operations such as milling, surface grinding, and CNC work for quick and efficient workpiece handling.
Key Features
Key Features
- High Magnetic Holding Force: Strong magnetic field generated by permanent or electromagnets ensures a firm hold on ferrous materials.

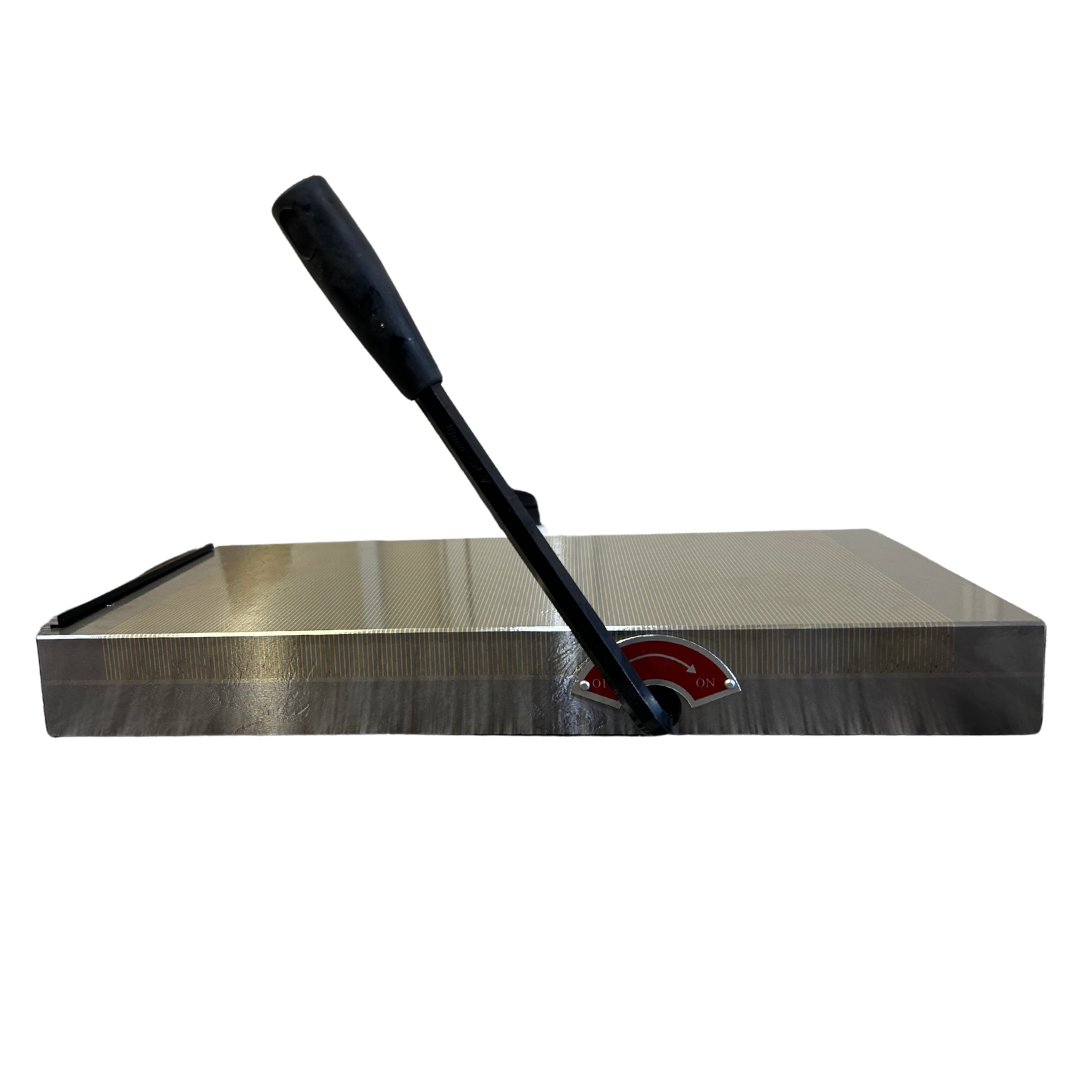

- Quick On/Off Operation: Magnetic chucks typically have an easy switch mechanism to engage or disengage the magnetic field, providing fast setup and removal of workpieces.
- Even Magnetic Distribution: A uniform magnetic field across the surface ensures equal holding pressure and eliminates distortions or damage to the workpiece.
- Flat and Rigid Surface: The chuck’s surface is precisely machined to provide a flat, stable foundation for accurate machining.
- Permanent Magnetic Chucks: Use fixed magnets and are ideal for simple, maintenance-free operation.

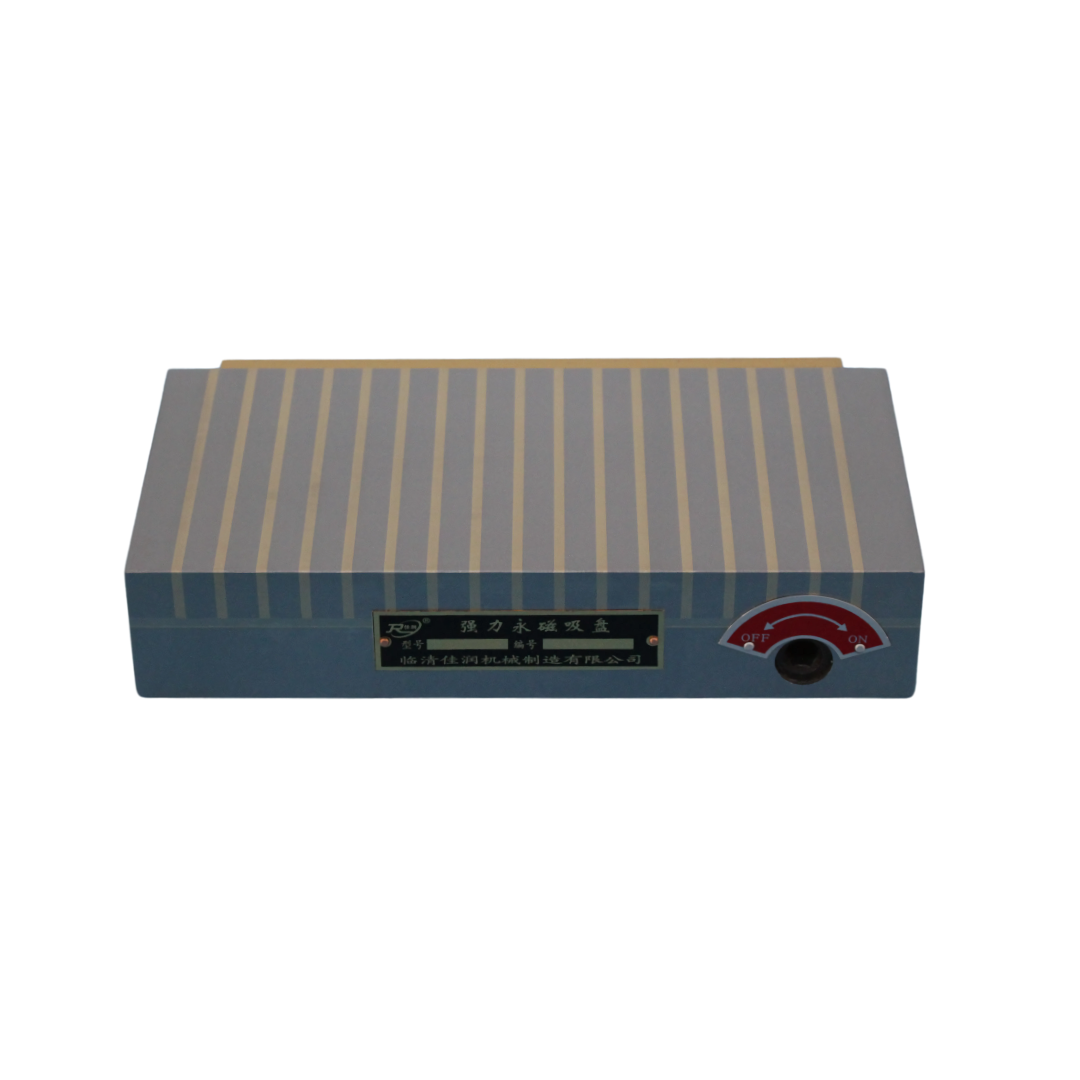

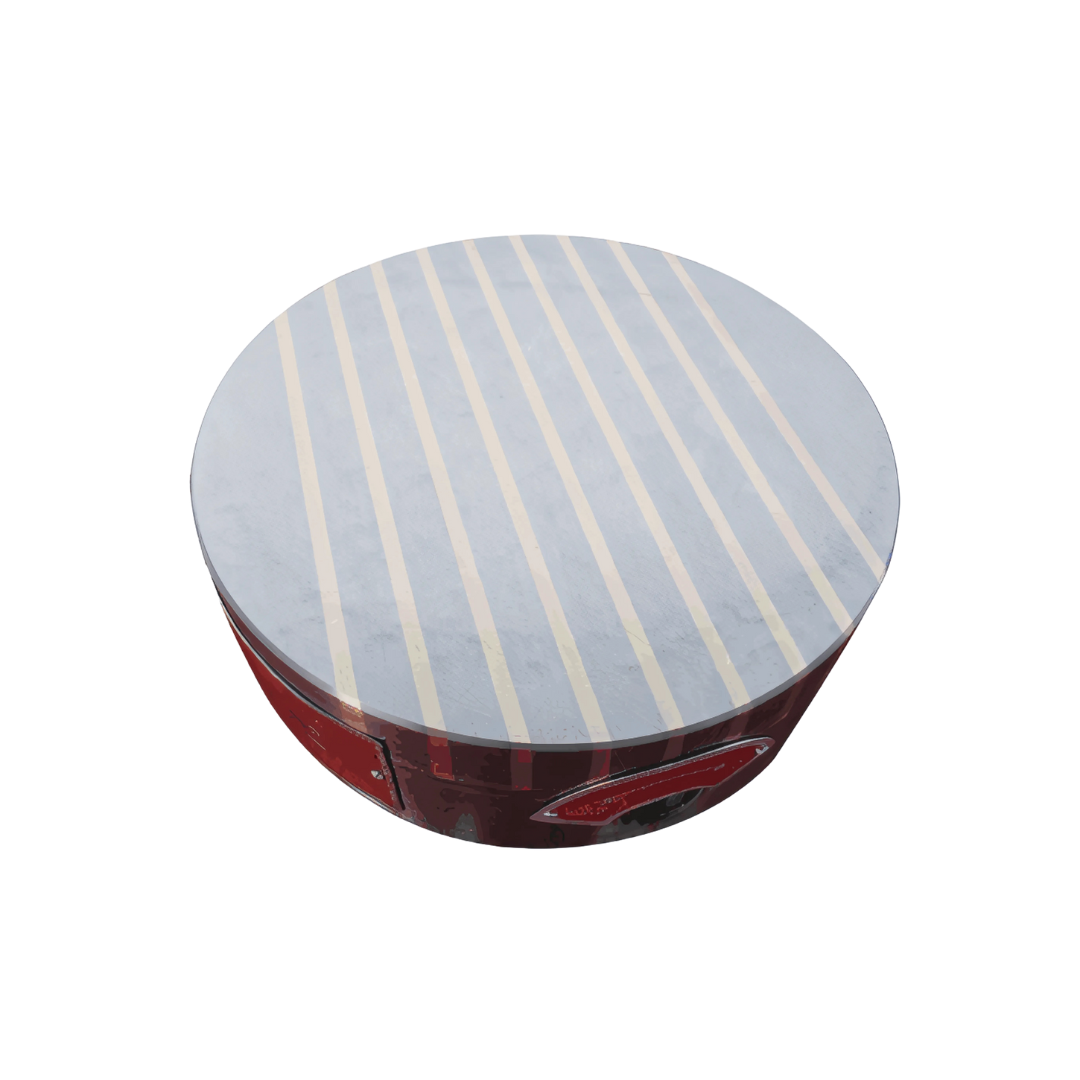

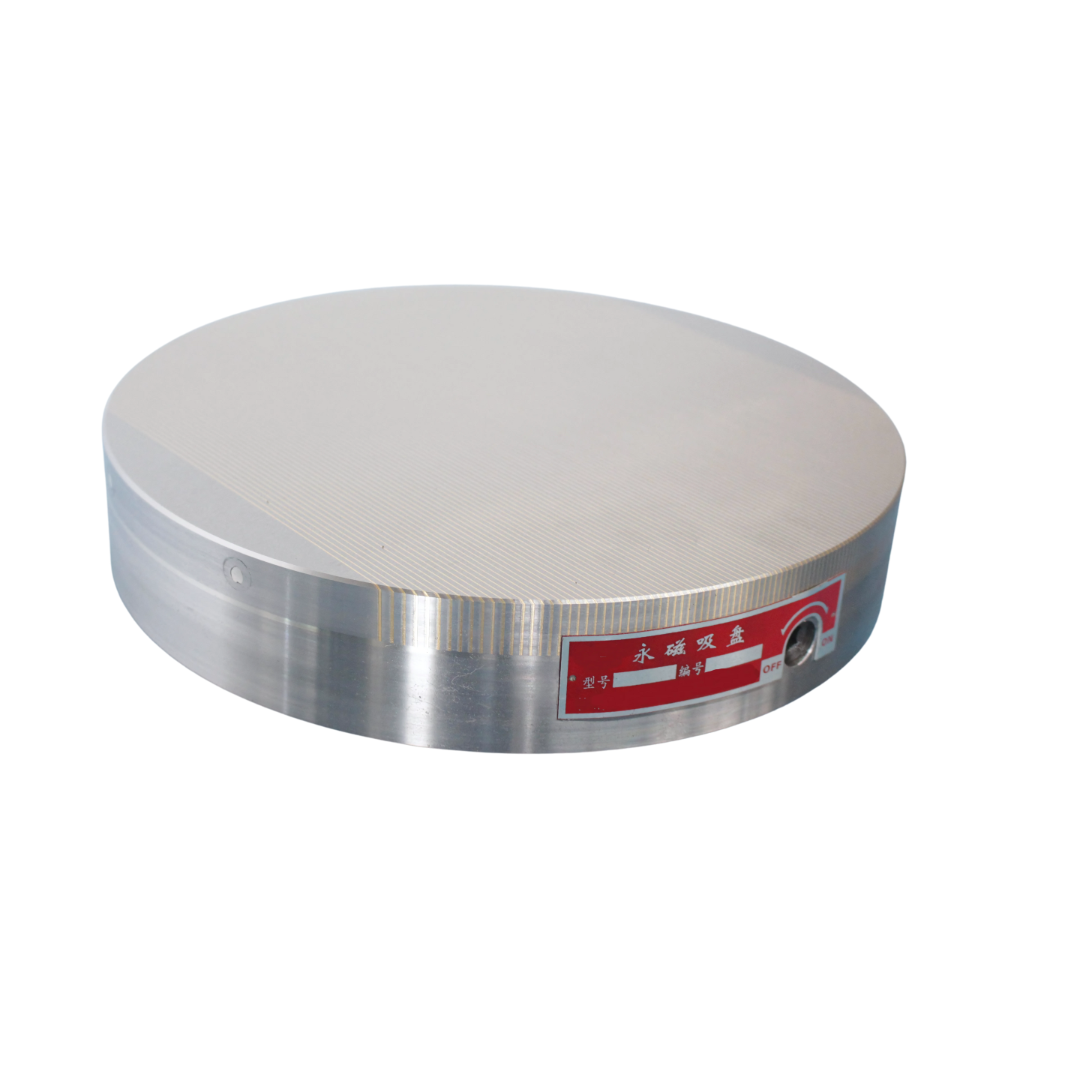

- Versatile Holding Styles: Chucks are available in a variety of sizes and configurations, such as rectangular, circular, and V-shaped to accommodate different workpieces.
- Durable Construction: Made from high-strength materials like stainless steel, these chucks are designed to withstand heavy use and harsh machining environments.
Applications
Applications
- Surface Grinding: Secures workpieces for precision grinding, ensuring uniform and accurate surface finishes.
- CNC Machining: Used in CNC machines to hold ferrous materials during automated cutting, milling, and drilling operations.
- Milling: Provides a stable and rigid foundation for holding flat or irregular-shaped parts during milling operations.
- Wire EDM: Helps to hold metal workpieces during electrical discharge machining (EDM).
- Tool Room Applications: Perfect for small, delicate, or thin workpieces where traditional clamping methods could cause distortion.
- Fixture for Welding: Used in welding applications where a flat surface is required to hold metal parts in place while welding.
- Grinding of Thin and Fragile Parts: Ideal for holding thin parts that might be damaged by mechanical clamping.
Benefits
Benefits
- Quick Setup and Removal: Magnetic chucks provide faster and easier setups compared to traditional mechanical clamping methods, reducing machine downtime.
- No Physical Contact: Since magnetic chucks hold parts without physical contact, they prevent deformation or damage to delicate or thin materials.
- Enhanced Precision: The firm, even hold ensures minimal movement, resulting in highly accurate machining and grinding operations.
- Durability: Made from robust materials, these chucks are built to withstand heavy-duty use, offering long-lasting performance.
- Increased Productivity: With quick setup, reduced handling time, and stable holding power, magnetic chucks improve overall machining efficiency.
- Versatility: Magnetic chucks can hold a wide range of materials (primarily ferrous metals), including parts with irregular shapes, providing flexibility for various machining processes.
- Safe and Reliable: The magnetic field holds parts securely, ensuring safety during high-speed machining operations, reducing risks of workpiece movement.
Please contact us for more details on magnetic chucks
